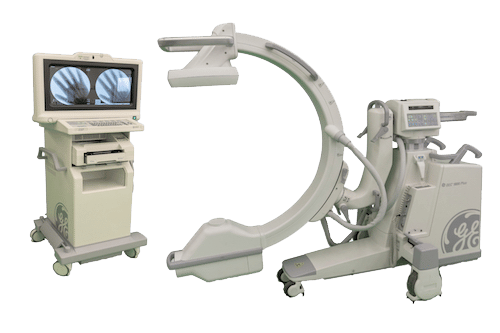

GE OEC 9800 LED Flat Panel Retrofit Kit
AADCO’s 9800 CMOS Retrofit Kit is the first fully developed digital flat panel retrofit kit designed specifically for the GE / OEC 9800 C-arm. This kit extends the life of existing 9800 C-arms and provides vast improvement in both image quality and patient outcome. This solution fully integrates with original GE software, at a fraction of the price of a new C-arm.
SKU: C-9800SERIES
Categories: C-Arms, Digital Radiography Retrofit Upgrades & Attachments, Digital Radiology Imaging Equipment
Tags: 9800, C-arm, Flat Panel
Description
FEATURES
- Best in Class, Low-dose Image Quality
- 30fps at Full Resolution
- 100 um Pixel Pitch
- Up to 200fps in Binned ROI Modes
- Reduced Image Lag
- Instant Mode Switching
- No Warm-up Time Needed • Stable Offset Calibration
- Low Power Dissipation
- Defect Pixel Correction
- Gigabit Ethernet Data Interface
TYPICAL PERFORMANCE VALUES @RQA5
Panel Size | 22cm x 22cm |
Scintillator | Medical-Grade Columnar CsI |
Saturation Dose | RQA5 (per mode) 2 uGy / 10 uGy / 40 uGy |
Dynamic Range (per mode) | 70 dB / 75 dB / 77 dB |
MTF @ 1 lp / mm / 2 lp / mm | 60% / 27% |
DQE(0) @ 1 uGy, RQA5 | 75% |
DQE(0) @ 10 nGy, RQA5 | 68% |
Image Lag (1st Frame @ 30fps) | 0.10% |
X-Ray Energy Range | 15-150 kV |
Power Consumption (Active) | < 15W |
Additional information
Item | 9800 Retrofit Kit 9", 9800 Retrofit Kit 12", 9800 Monitor Upgrade |
---|
