One Panel DR-300 X-Ray System

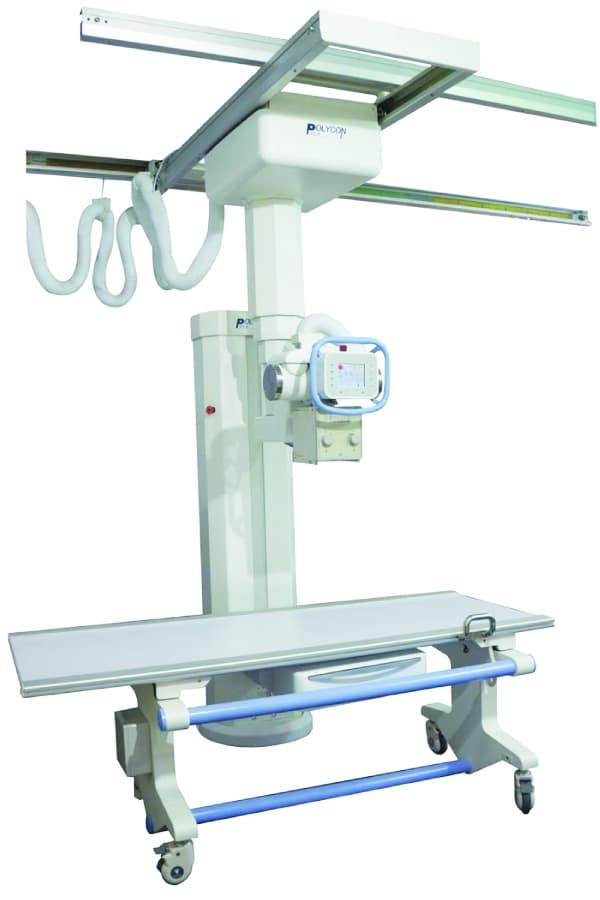

The DR-300 single panel total solution includes a heavy-duty overhead x-ray tube system (DRC-2200) characterized by its simple and functional, lightweight design. This system assures highly precise positioning for an optimal DR result. This tube stand can cover nearly the entire area of the room in which it is installed. Combined with a 4-way float top, carbon fiber imaging table (AADCO’s T-300) and a vertical bucky, it is a complete, single panel DR Solution in a more traditional form factor.


DRC-2200 Tube Stand Features:

• Motorized 3-way tube stand movement
• Touch screen displays SID/angle, detector height/angle & 12 functions
• Switch from manual to motorized with one touch
• Single button positioning
• Motorized servo tracking with wall bucky
• Integration with CPI generators
• Longitudinal rail 3800mm, travel 2950mm
• Transverse bridge 2500mm, travel 1600mm
• System weight 485 lbs. (220 kg)
• Power 110/220 VAC/50-60 Hz/5amps
• Telescoping carriage size (LxWxH) 713 x 620 x 980mm

T-300 Carbon Fiber Mobile

• Battery operated for full day use on one battery charge
• 594 lbs. (269 kg) evenly distributed weight load capacity
•Table dimensions: width: 31.5″ length: 82.6″
• Longitudinal travel 31.5″ (800mm)
• Transverse travel 11.8″ (300mm)
• Locking casters on front wheels
• Table weight: 286 lbs. (130 kg)
Please contact us for Non-USA electric

DRS-1800 Bucky Stand Features

• Motorized wall stand
• 6″ TFT touch screen
• Single button positioning chest or table
• 12 key wireless control
• Vertical travel 1350mm
• Maximum carrying capacity 90kg
• DH rotation 180 degrees (+90/-90)
• Manual swing (+90/-90) with positive lock optional
• Stand weight 496 lbs. (225 kg)
• Dimensions (LxWxH) 595 x 322 x 2106mm
• Auto-positioning
• Auto-tracking
