Lightning Plus Instant DR Solution

AADCO’s Lightning Plus allows the end user to use DR in any existing X-ray Room (Radiographic) or with any X-ray Portable!  Amazingly, it requires no installation or calibration. It works with your X-ray system photo-timer or even when there is no photo-timing, using conventional radiographic techniques.


The Lightning Plus includes a wireless 17” x 17” Gadolinium Oxide (Cesium Iodide optional) DR Imaging panel (weight 6 lbs.) and a 15.6″ touchscreen laptop workstation. This system includes all necessary image acquisition, image processing software, and DICOM compatibility.

Hardware Workstation

• BladeView Software
• 15.6″ Touchscreen
• Max Screen Resolution 1920 x 1080
• 2.5 GHz Intel Core i7 Processor
• SS Hard Drive, 256 GB SSD
• Graphics Co-processor
• Intel Integrated Graphics
• Intel Chipset
• Card Description, Integrated, Wireless Type, 802.11 A/C
• 8 Hour Average Battery Life

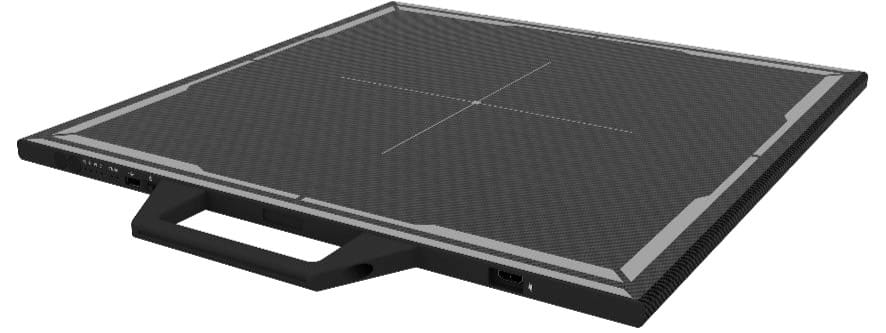

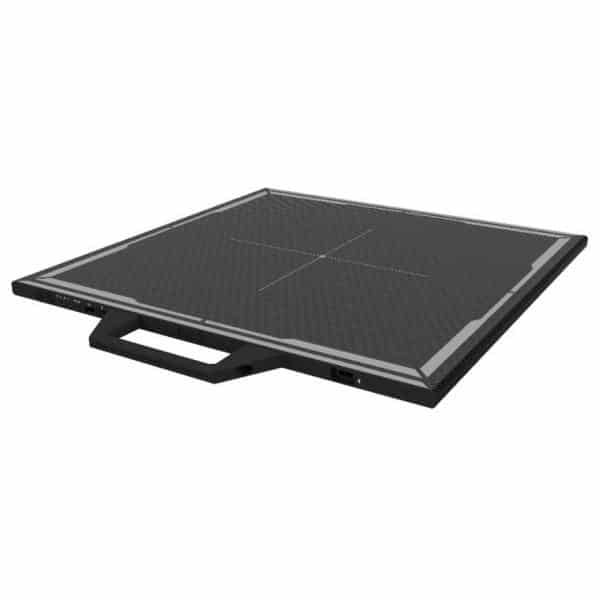

Flat Panel

•17”x17” Cesium Iodide Wireless DR Imaging panel
• 6.3 lbs

BladeView Software

Our software provides robust, real-time harmonization of all image elements so that the huge dynamic range of DR can be appreciated.

• BladeView Acquisition Software
• World class image quality
• Fast, reliable connectivity to remote PACS and image management systems
• Simple “touch screen” design provides “Two Click” image acquisition
• Digital Radiographic acquisition
• Stitching
• New Patient: Emergency, Manual Data Entry or WorkList
• Integrated Generator Control
• Integrated Collimator Control
• Protocol Defined Acquisition Image Enhancement
• DICOM Store, Print and Media Creation
• DICOM Worklist
• Video outputs for Control Station Monitor
• Review image processing
• True multi scale image processing
• Automatic Rad Code Import
• Zoom and Roam
• Magnifying Glass
• Flips and Rotate
• Window and Level, Invert
• Text Insertion
• Measurement Package
