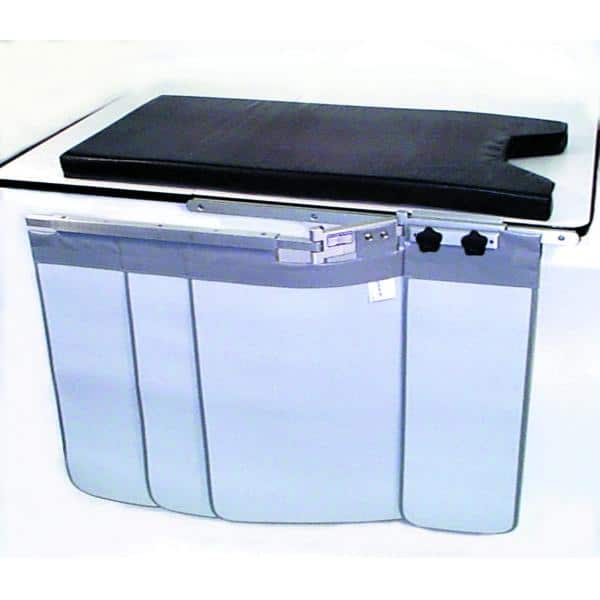

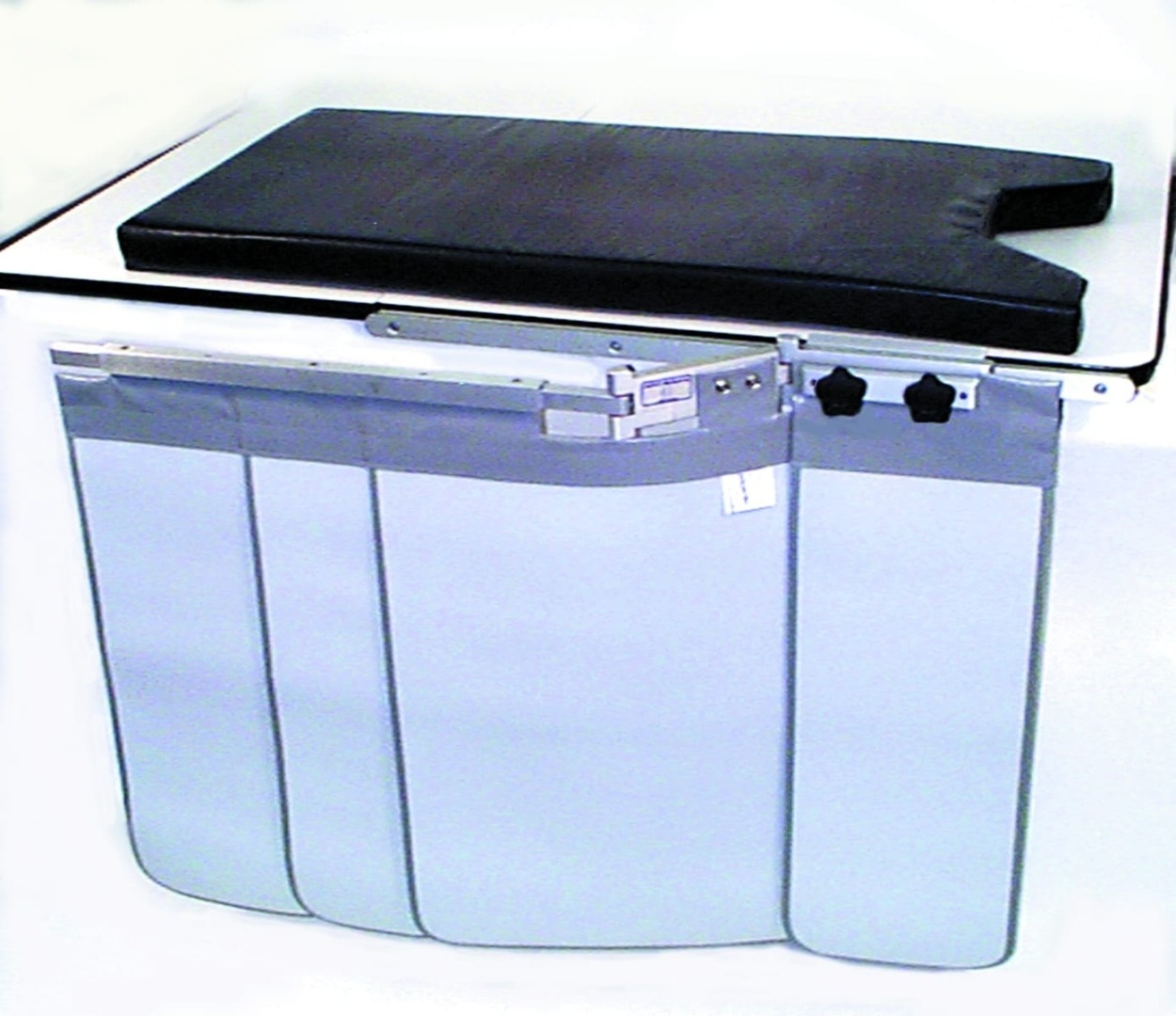

RayShield® Four Piece Under Table Shield






Our exclusive Dual Lock™ Mount system makes leveling shields on any conventional size accessory rail easy and secure.

SKU: S-405 Category:

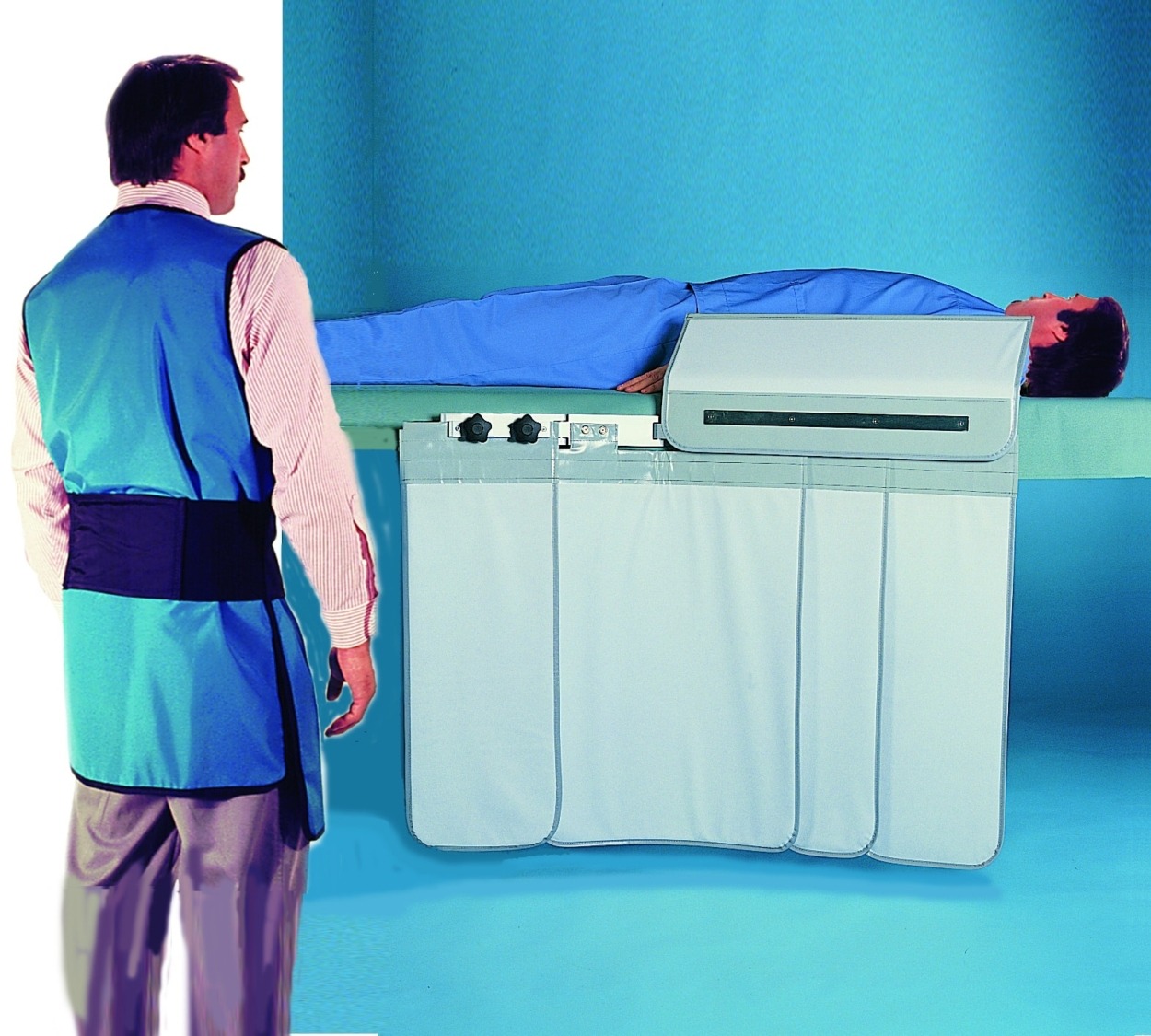

Equipped with a 17cm wide mounting bracket which can slide and lock onto table side accessory rails up to 28.5mm high by 8.8mm deep. Flexible 0.5mm lead equivalent overlapping curtains are attached to an aluminum alloy pivot arm that is double jointed and can pivot at two points in order to conform to the shape of many tables. The entire pivot arm can create a side wing up to 32″ wide.   A removable 24″ wide top shield (9″ high) may be easily fitted on top or lifted away for patient transfer.

  • 40″ wide x 28″ below the attachment arm
  • 24″ wide top shield 9″ high
  • Provides a side wing of up to 32″ wide
  • Dual Locking Handles for better mounting adjustment
