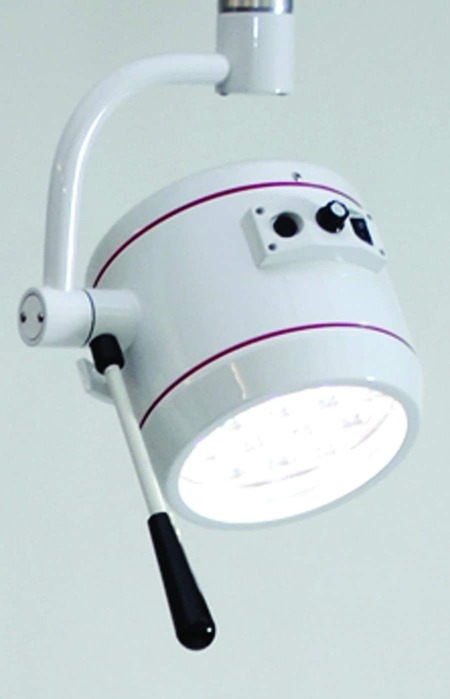

ErgoLite® LED Examination Lamp 24V




The ErgoLite® lamp runs on 24V DC from a 120V or 240V power supply and offers infinite focus with a light intensity of 75,000 Lux LED. The lamp head is 19cm in diameter, and infinite focus lets the field size stretch from 14cm to 25 cm, depending on the distance between the lamp and subject. Comes with a removable, sterilizable handle.  Compatible with Hercules® Overhead Suspension Systems.  Also available MRI-Safe®.


Light intensity at 1 meters (Lux) 75,000
Light field size (cm) up to 1.5 meter with infinite focus 14 – 22
Color temperature (Kelvin) 5,175 ± 100
Temperature increase near head 0.1° C
Total power consumption 20 VA
Number of LEDs in array 19
Working distance (cm) 70 – 150
Diameter of lamp head (cm) 19
Power input to power supply 110 to 240 AC, 50/60 Hz
Power voltage to lamp 24 VDC
Rated current to lamp 5 Amps
Additional information

Conventional, MRI-Safe®

Power Supply

External 100 to 240VAC 50/60HZ Power Supply, External 120VAC, 24 VDC Power Supply
