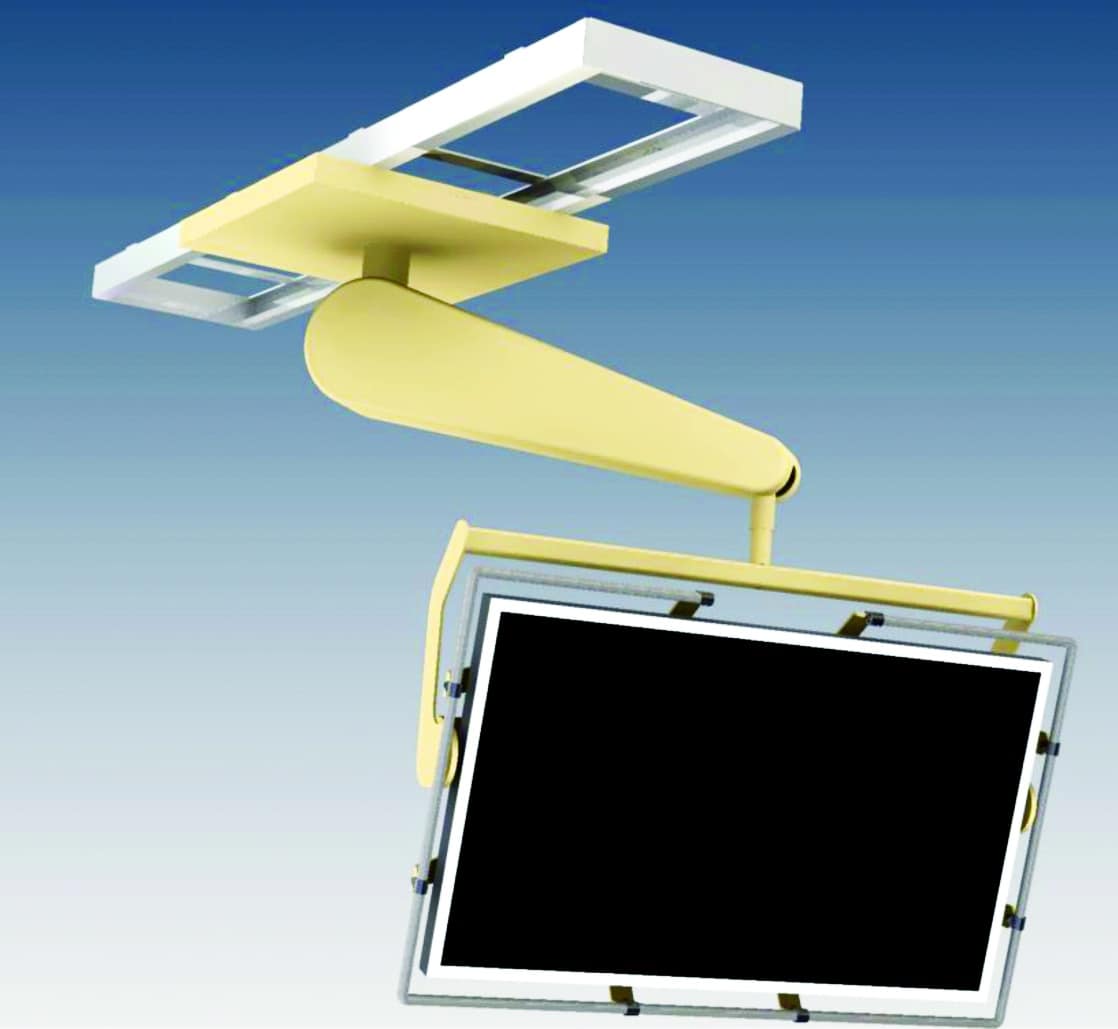

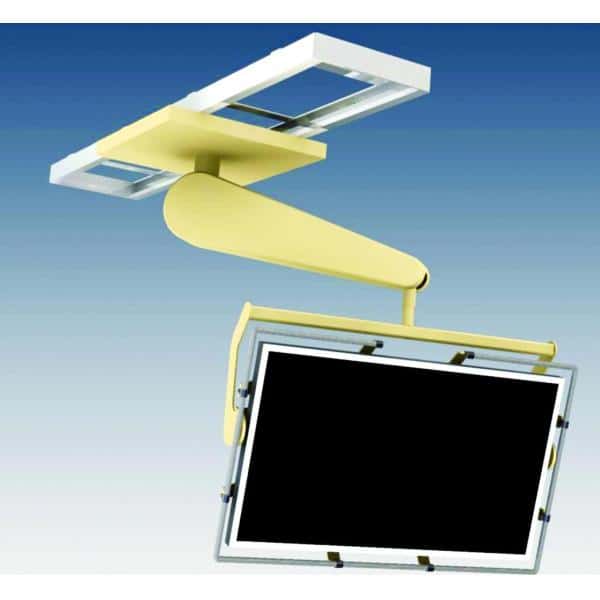

Hercules® Super Heavy Duty Monitor & Equipment Suspension System



Lighter in weight, longer in reach and more adjustable than competing products!

AADCO’s OS-80 is designed for heavy load conditions, up to 265 lbs (120 kg).  This system is the ideal solution for monitors up to 60 inches, multiple displays, or other equipment.


This medical equipment suspension system has a weight capacity of up to 265 lbs!

This heavy duty system can easily hold your 60 inch flat screen display, or several smaller flat panel displays.  You can use this system with a ceiling track, or on a fixed column.  In addition, the system may be used with existing ceiling tracks that are rated for loads of 510 lbs or more.   All Hercules® Medical Equipment Suspension Systems are customizable to your specific needs.

  • Weight Capacity 265 lbs
  • 330° Horizontal Rotation
  • 40″ Extension Arm for Mounting Equipment
  • 45° Vertical Movement of Spring Arm
  • 350° Rotation of Spring Arm
  • 15° Display Mount Vertical Tilt


Pair the Super-Lifter with a custom trolley for an existing track mounted overhead system, or with AADCO’s Track & Trolley!
